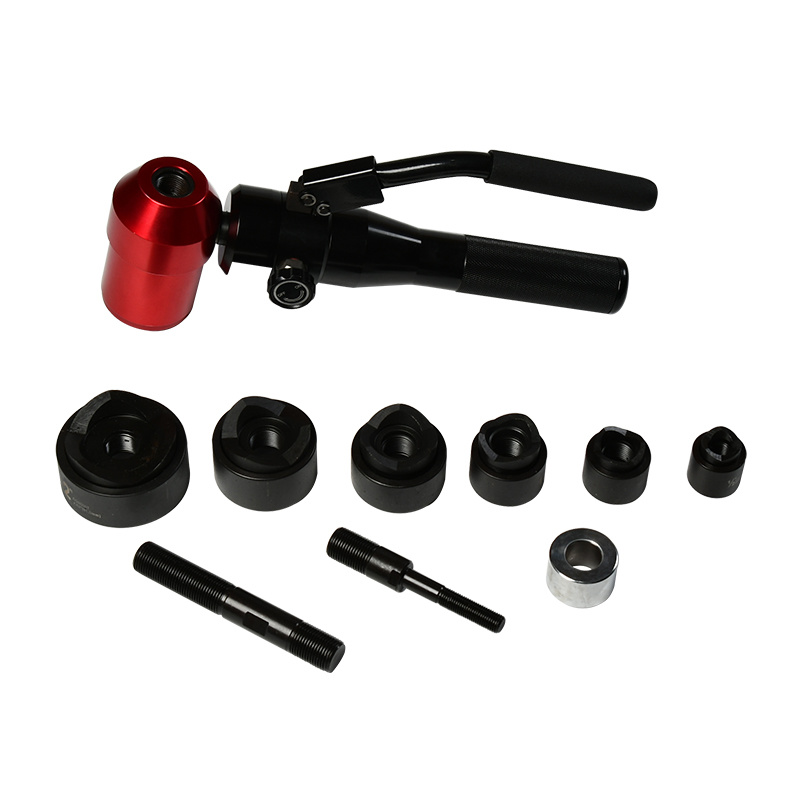

Universal Hole Opener
Key words:
Categories:
Keys: Universal Hole Opener
E-mail:
Details
Function
1.Beautiful structure, easy to operate;
2.The head and cylinder body of aluminum alloy material make the product lightweight and easy to carry;
3.Circular and square molds can be customized according to customer needs (be sure to measure the correct required dimensions;
4.Suitable for painted distribution cabinets, switch boxes, and sheet metal as a whole. The product can be flexibly replaced with molds, and the surface will not be damaged after perforation.
Sepctification
| Model | TPA-8A Aluminum Hydraulic Hole Opener |
| Stroke | 22mm |
| Suttle Weight | 1.8Kg(without mold and packing) |
| Configure mould |
φ22.5, φ28.3, φ34.6 φ43.2, φ49.6, φ61.5mm |
| Spare part |
Below 3mm(b16.5-60.8mm) soft steel, Below 2mm(medium 16.5-115.5mm) soft steel, Below 2mm(medium 16.5-60.8mm) stainless steel |
| Opening range | One small tie rod, one large tie rod, one set of sealing ring |
| Opening pressure | 6T |
| Weight | 310mm |
| Gross weight | 5.8Kg(including packing mold) |
Punch and die dimensions are marked on the face of the lower punch. If special dimensions or shapes are required, please contact the distributor or manufacturer who can customize the dies to meet specific requirements.

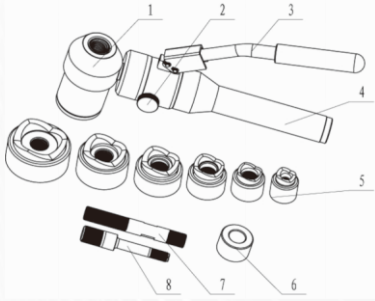

1.Ram
2.Turn screw
3.Active handle
4.Fixed handle
5.Spacer
6.Punch &die
7-8.Draw Stud
